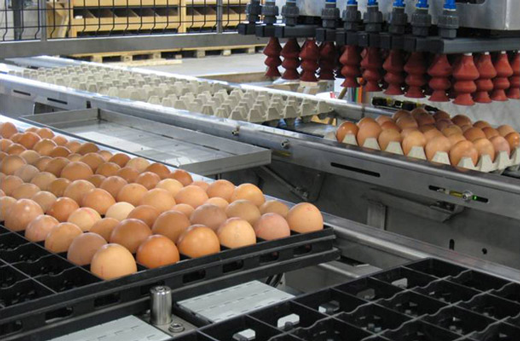

Automatic transfer system

Ideal for high capacity transfer of hatching eggs directly from 30 trays onto setter trays.

Pas Reform’s Automatic transfer system AS/30ST requires two operators to deliver maximum transfer of up to 35,000 hatching eggs per hour from setter tray to hatcher basket.

Precision suction heads descend automatically onto the eggs, to lift them gently by vacuum and deposit the eggs into the setter trays.

Empty tray stacking and automatic setter tray destacking is available as an option. To further increase speed and efficiency, a destacker unit may be fitted to the input conveyor.

Technical Specifications

Capacity 35,000 hatching eggs/hour
Personnel Two person operation
Electrical requirements 400 Volts, 50 Hz, 3 Ph neutral earth
RCD/RCCDD rating 200mA (minimum)
Air Constructed of stainless steel
Materials 550 Kg/650 Kg (including pallet)
Dimensions (LxWxH) 7500 x 2050 x 2450 mm
Easy cleaning All electronics are located in the sealed, stainless steel transfer head of the machine
Options Destacker hatcher baskets, stackers/loader hatcher baskets, setter tray stacker, trolley unloader
