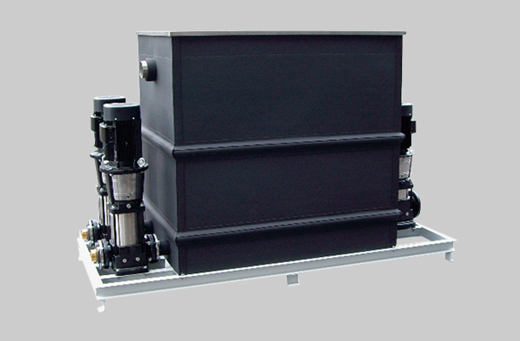

Buffer tank and pump set

The Pas Reform buffer tank and pump set is designed to optimise cooling water distribution throughout your hatchery.

Pump set

One or more primary pumps circulate a constant flow over the process water chiller’s liquid heat exchangers. Two cascade connected secondary pumps circulate the water to end users (e.g. incubators or air handling units). The primary system’s free flow return ensures a 0 bar free outlet - and with that, a more constant pressure in the cooling system. The buffer tank is used as a 100% efficient heat exchanger, with buffering function to damp out temperature fluctuations in the cooling water of the secondary circuit.

Technical Specifications

Type   Content buffer tank Power primary pump   Power secondary pump
  (in m3) (in kW) (in kW)
83-166 kW 1.5 1.1 2*2,1
166-264 kW 2.0 2.0 2*4,0
264-394 kW 2.3 3.5 2*4,5
394-528 kW 2.7 5.5 2*5,8
