Climate Control (HCC)

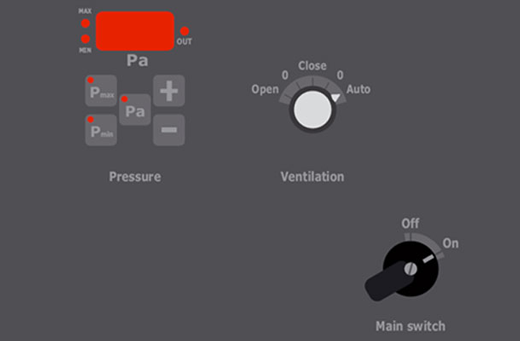

Pas Reform’s hatchery climate control unit HCC-P1-24, controls the fresh air supply valves, to maintain positive pressure for enhanced biosecurity and energy savings.


Maintains air pressure to the required constant in a plenum or attic, by managing the amount of fresh air supplied to the setter and hatcher room. By controlling the pressure, only the amount of air actually needed by the incubators is acclimatized. Consequently, no energy is wasted (as is the case with ventilation systems operating permanently on maximum capacity). Clean rooms are isolated by higher pressures while dirty areas are maintained at lower pressures, thus preventing any flowback of dirty air into clean areas. Features digital read-out of measured pressures, minimum and maximum pressure alarms and different set points for control and alarm values.

Technical Specifications

Number of pressure sensors 1
Number of independent pressure controllers 1
Supply voltage 230Vac 50/60Hz
Connecting value / External connections 80VA / 1 x 35 VA
Dimensions 220 x 180 x 100 mm
Protection class> IP54
