Egg Room Cooler

Pas Reform’s Egg Room Cooler: reliable, efficient cooling in the egg cold store, egg receiving area and egg store.

Egg Room Cooler

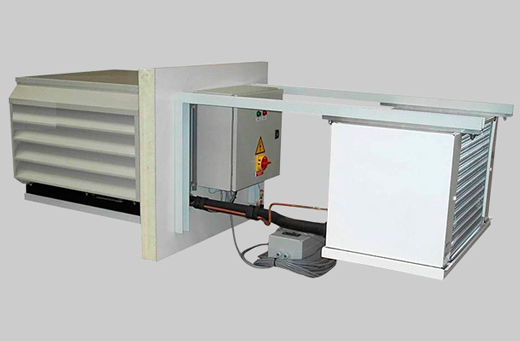

The evaporator unit, which includes a fan, a 3 kW heating element and a control thermostat, is situated inside the building. The condensing unit and control box are located outside. Both parts are pre-mounted on a single frame, separated by a sandwich panel for easy installation.

Available with 5 or 9 kW cooling capacity.

Optional split versions available, where evaporator and condenser can be located further apart from each other. Both units are pre-mounted on sandwich panel for easy installation.

Technical Specifications

Cooling capacity 5 kW 9 kW
Heating capacity 3 kW 3 kW
Electrical requirements: 230 Volts, 50 Hz, 1 Ph + 0 + PE 230 Volts, 50 Hz, 1 Ph + 0 + PE
Power consumption (5 kW / 9 kW): 6.0 kW 8.5 kW
Weight (5 kW / 9 kW): 50 kg 100 kg
