An optional egg detect and reject system can also be incorporated into the unit. This detects eggs left in the tray after transfer, and rejecting the entire tray and placing it into a temporary buffer for manual inspection.
Candling and transfer machine
Automatic candling and transfer of hatching eggs from setter trays into hatcher baskets.
Candling

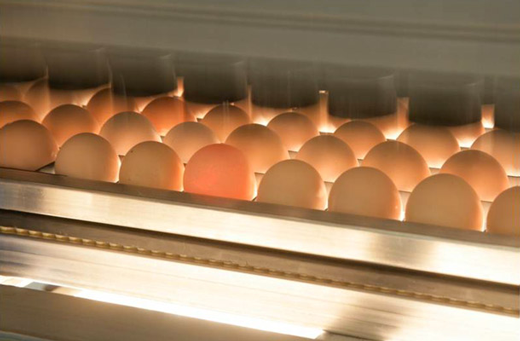

The light sensor in the candling unit scans the eggs, to reveal whether eggs are fertile, infertile, early dead, late dead or clear. This data is recorded into a database for review and reference - and infertile eggs are automatically removed. The proportion of fertile or infertile eggs has no effect on machine throughout.Transfer
Automatically transferring eggs from setter tray to hatcher basket, the transfer unit vacuum picks 150 eggs at a time, to gently place them into the basket.An optional egg detect and reject system can also be incorporated into the unit. This detects eggs left in the tray after transfer, and rejecting the entire tray and placing it into a temporary buffer for manual inspection.
Options
An In Ovo vaccination machine can be added to the system.Technical Specifications
| Capacity | Depending on the type of setter tray and transfer unit, up to 70,000 eggs per hour |
| Candling categories | Fertile, late dead, early dead and clear |
| Fowl type | Chicks, turkeys and ducks |
| Main dimensions (lxwxh) | 2.8 x 1.65 x 2.75 meters (excluding conveyor length) |
| Connection values | Standard 400V, 3 phase, earth, 0 and earth |
| Power consumption | 6.5 kW |
| Air consumption | 0.45 m3 per hour at 7 bar |
| Control cabinet | Stainless steel, equipped with a 10.5”” touch screen full colour display |
| Database | Extensive data handling program |
| Network | Connection with company network |
