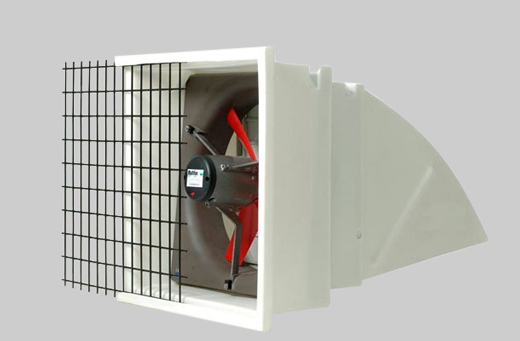

Exhaust fan

Wall-mounted or fully integrated into the piping system, to control air-pressure in specific areas of the hatchery.

Variable speed motor designed for a specific impeller, with motor protaction switch and a choice of automatic (using Pas Reform’s HCC-P1-230) or manual control (HCC-M-230).

Robust, fully enclosed aluminium fan housing with integrated thermal protection. High performance lubricant withstands temperatures up to 155°C. Wall mounted version supplied with housing. Pipe integrated versions include roof mounted pipe, with option for 3 meter pipe extension.

Technical Specifications

Electrical requirements:  230 Volts, 50 (optional 60) Hz, 1 Ph + 0 + PE
Power consumption:  0.1 – 1.6 kW
Dimensions (diameter): 320 – 650 mm
Weight:  9 - 28 kg
