Heat Exchanger

Pas Reform’s Heat Exchanger delivers warm water at the right temperature and pressure to optimise performance in SmartSet™ setters with integrated heating/cooling functionality.

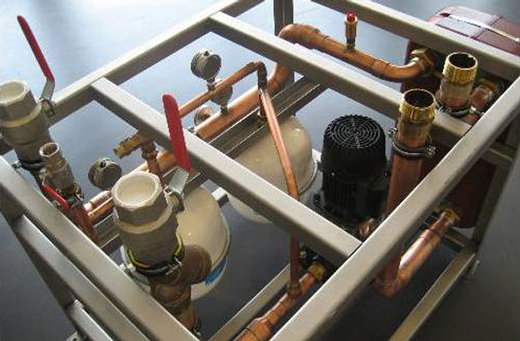

Heat Exchanger

Separates and maintains the primary central heating circuit from the secondary heating/cooling circuit of your SmartSetTM setter, to eliminate water shocks and ensure that sufficient pressure is maintained.

Supplied fully assembled, with integrated circulation pump, heat exchanger, water filter, differential pressure regulator, automatic air-relief, two expansion tanks, overpressure safety valve, thermometers and manometers.

Technical Specifications

Heating capacity: 95 kW 150 kW
Electrical requirements: 230 Volts, 50 Hz, 1 Ph + 0 + PE 230 Volts, 50 Hz, 1 Ph + 0 + PE
Power consumption: 0.27 kW 1.0 kW
Dimensions (lxwxh): 1,000 x 800 x 800 mm 1,100 x 900 x 900 mm
Weight: 50 kg 80 kg
