SmartProTM incubation system

After three years of intensive research and development, Pas Reform is introducing SmartProTM - its latest and most advanced development for modular, single-stage incubation to date: a solution that enables Circadian IncubationTM.

The modern hatchery manager’s goal is to produce large numbers of uniform, robust day old chicks. Robustness is a health criterion, originating in the embryonic life stage of the chicken – and correlating directly with the performance and resistance of individual chicks under differing farm conditions.

Detailed research has shown that robustness can be achieved by stimulating the embryo with a specific trigger, i.e. stimulation by heat or cold, during critical periods of the incubation process. This causes so-called ‘embryonic imprinting’ on a physiological level, to produce a chicken that will thrive in its farm environment.

Such daily short-term thermo-conditioning is at the heart of Circadian IncubationTM – and known to improve hatchability, for long-lasting effects that include 1-2% increase in final body weight and 1-2 points better feed conversion rates. Batches of uniform, robust day old chicks also deliver uniformity at slaughter age, thereby improving processing yields, efficiency and performance throughout the entire production chain. To support the use of Circadian IncubationTM, the incubator must deliver precise climate control. To achieve truly homogeneous temperature distribution, the challenge is to exchange energy, CO2/O2 and moisture – without affecting temperature uniformity around the eggs.

To meet this exacting requirement, Pas Reform’s SmartProTM uniquely combines three critical features1: modular design, a new VortexTM-based airflow principle and Adaptive Metabolic FeedbackTM.

1 Patent Pending with Worldwide Intellectual Property Rights

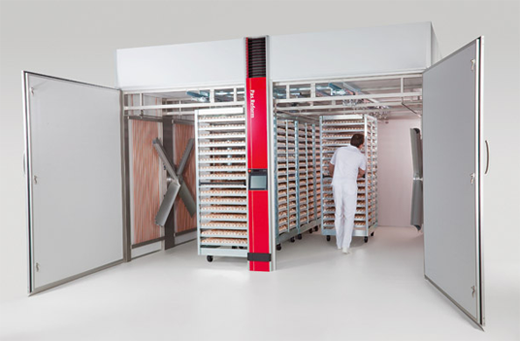

Modular incubator design
Modular design creates sectional environments in the incubator that can be controlled individually. This is the only way to guarantee homogeneous temperature in incubators containing more than 100,000 hatching eggs. Each modular section of the incubator is supported by its own temperature, heating, cooling, humidification and ventilation systems.

Modular design: precise control

  • Modular setter and hatcher design enables the precise control of temperature, humidity, O2 and CO2 in large incubators.
  • Separate heating, cooling, humidification and ventilation systems in each module of 19,200 eggs provide a homogeneous environment.
  • Modular, precise ambient control for larger hatchers comprising up to six modules.
  • Integrated heating & cooling system (setter) and SurroundCoolingTM (hatcher) in each section of the incubator, for optimum energy transmission, fast, even warm-up to set temperature and maximum, future-proof cooling capacity.
  • Modular design of both setter and hatcher uniquely enables the incubation of eggs from different flocks and different ages in the same machine, without losing performance and results.
VortexTM-based airflow
Intensive analysis using Computational Fluid Dynamics (CFD) has demonstrated that the most effective method of exchanging energy, CO2/O2 and moisture in the incubator, is to generate as many vortices as possible – of a specific dimension and intensity – in the wake of the air pump blade. This research, combined with practical field studies, has driven the design and construction of Pas Reform’s brand new VortexTM.

VortexTM for complete temperature homogeneity

  • Tested and proven as the most effective method of exchanging energy, CO2/O2 and moisture in the incubator.
  • Generates multiple, controlled vortices in the wake of the air pump blade, exchanging energy, CO2/O2 and moisture without affecting the incubator’s homogeneous temperature.
  • Inlet air is channeled along the side of the setter trolleys, to prevent ambient air making direct contact with the eggs.
  • Mixing zone assures complete air temperature homogeneity before air is drawn over the eggs.
  • Mixed air vortices flow in parallel with the turning direction of setter trolleys, ensuring that air direction along the eggs changes constantly, for unique, homogeneous egg shell temperature.
Adaptive Metabolic FeedbackTM
Adaptive Metabolic FeedbackTM (AMFTM) has been developed to ensure that the incubation environment meets the metabolic needs of each growing embryo during its development. With a focus on managing moisture and CO2, AMFTM continually ‘reads’ the time-varying metabolism of a specific batch of embryos, to adapt control parameters and fine-tune the incubator environment according to the embryo’s needs. Ultimately AMFTM maximizes uniformity by optimising airflow, the evaporation of moisture and air redistribution.

AMF™: creating an adaptive environment

  • AMF™ software delivers precise, adaptive control over humidity and CO2 during the incubation process – according to the time-varying metabolism of a specific batch of embryos.

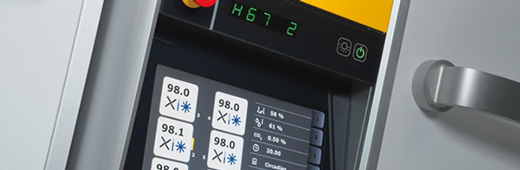

  • Unparalleled functionality incorporated into one central operator console. Fully integrated sensor box includes high precision electronic humidity and CO2 control.
  • Custom controlled relative humidity set points for variable egg weight loss at each stage of embryonic development.
  • Prevents excessive inlet of (dry and cold) fresh air for maximum temperature homogeneity.
  • Additional, integrated modules include SmartWatch™ - automatically registers and minimizes the hatch window; ESM™ Energy Saving Module - for fully programmable Vortex™ RPM; SmartTransfer™ module - for programmable turning intervals during transfer; PID control – with set points per section and fully adjustable turning programmes.
Ergonomically advanced
Ease of use is of paramount importance in the daily, working practice of the hatchery. From loading and unloading incubators, to closed-door operation and keeping both routine and service maintenance tasks to the minimum, SmartPro’s™ advanced ergonomic design benefits from decades of practical hatchery experience. Every detail has been thoughtfully engineered, to deliver safe, efficient operation, while at the same time minimising maintenance, reducing the risk of mistakes and decreasing labour costs.

Thoughtful engineering. Maximum user friendliness

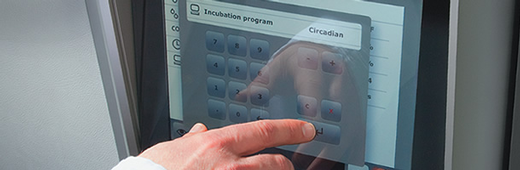

  • SmartTouch™ multi-language user interface design, makes operation simple and easily accessible to operators of all skill levels – from experienced hatchery managers with specific control needs, to fully automated hatcheries.
  • Large, high-contrast, high resolution 10.4 inch colour LCD screen with Projective Capacitive Touch Screen technology (PCT) and ergonomic user interface viewing angle.
  • Highly manoeuvrable trolley, with two swivel wheels and ergonomically designed handle bar for easy loading / unloading of incubator.
  • Large inspection window provides full view of entire machine interior for thorough physical inspection, plus comprehensive user interface and record keeping – all from outside the incubator.
  • Maximum use of maintenance free components, including high temperature bearings, long-life lubricants, low friction motors and toothed V-belt.
Hygiene assured
SmartPro™ was specifically designed to meet the stringent hygienic requirements of the modern hatchery. With compartmentalized sensors, modular hatchers to prevent cross contamination, the incorporation of Microban® antibacterial protection into hatcher baskets and integrated cooling pipes in aluminium hatcher walls, the time required to clean the incubator thoroughly is the shortest in the industry.

Smart, clean and protected

  • Modular hatcher control prevents cross contamination from older to younger batches, because eggs of different ages need not be mixed.

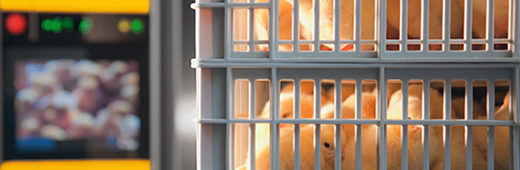

  • Hatcher baskets incorporate Microban® technology for the most effective, continuous antibacterial protection. Patented antimicrobial agent penetrates the cell wall of unwelcome micro-organisms on contact, disrupting normal cell function to prevent the multiplication and spread of bacteria.
  • SurroundCooling™ – integrated cooling pipes inside smooth-walled ‘food safe’ aluminium hatcher wall panels significantly improve the effectiveness of cleaning, minimize the risk of cross contamination and greatly reduce cleaning time.
  • Securely placed and compartmentalized sensors in central operating console allow for high pressure cleaning without risking damage to sensors.
  • All surfaces, fixings and finishes are designed to resist the ingress of moisture and bacteria, preventing the creation of dirt traps.
Energy efficient
With a focus on delivering environmentally friendly incubation, the CFD-designed and highly effective Vortex™, together with high efficiency motors, dramatically reduces electrical consumption. Adaptive Metabolic Feedback™ (AMF™) technology actively controls ventilation, to use only the specific amount of fresh air necessary. Together with the Energy Saving Module (ESM™) for metabolism-based RPM control, the use of fossil fuels and -electricity are reduced to the lowest possible levels, which translate into significantly reduced operation costs.

Eco-friendly, cost-efficient incubation

  • ESM™ Energy Saving module makes the RPM of the Vortex™ air pump fully programmable – derived from embryonic metabolism rates – to reduce energy consumption by more than 60% in specific phases of embryonic development.
  • AMF™ guards against unnecessary or excessive ventilation.
  • Vortex™ air pump blades and high-efficiency motors prevent energy loss by optimising energy exchange in the incubator.
  • Smart PID control delivers greatest accuracy to date in predicting heating and cooling for each incubator section, to avoid expensive overshoots.
  • Fully sealed cabinet, including airtight 3-lock door system and seamless ‘Hotmelt’ panels with maximum insulation value, designed to prevent energy leakage.

SmartSetPro™ 115

SmartSetPro™ 77

SmartSetPro™ 57

SmartSetPro™ 38

SmartSetPro™ 19

Capacity hen eggs 115,200 76,800 57,600 38,400 19,200
Capacity duck eggs 84,672 56,448 42,336 28,224 14,112
Capacity turkey eggs - - - 28,224 14,112
Height (+height of motor) (mm) 2459 (+300)
Height including louvre (mm) 2978
Width (mm) 4184 4184 2344 4184 or 2344 2344
Depth (+central operating console) (mm) 7276 (+72) 4938 (+72) 7276 (+72) 2600 (+72) or 4938 (+72) 2600 (+72)
Number of setter trolley(mm) 24 16 12 8 4
Height of setter trolley (mm) 2109
Number of (150 hen eggs) 768 512 384 256 128
Number of setter trays (126 duck/turkey eggs) 672 448 336 224 112
Setter tray dimensions 507 x 733
Modular Design Heating, cooling, humidification and ventilation systems in each incubation sect
Number of incubation sections 6 4 3 2 1
Number of temperature sensors 6 4 3 2 1
Heating Integrated heating, warm water radiator or electrical heating in each incubator section

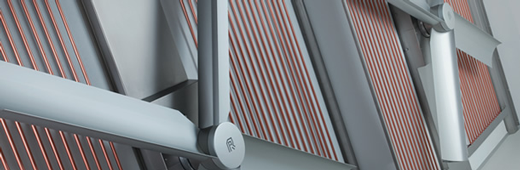

Cooling Water cooling system with 34 vertical, parallel coils in each incubator section
Humidification Spray nozzle in each incubator section (humidity roller optional)
Ventilation Vortex™ air pump system in each incubation section
Set points per section Separate temperature set points for each section of 19,200 eggs
SmartTouch™ user interface
Display High-contrast, 10.4 inch colour LCD screen with Projective Capacitive Touch screen technology (PCT)

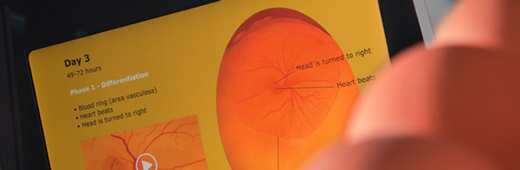

Embryonic reference Detailed Academy info on the current status of embryonic development
Performance testing module To run a performance check on incubators before starting a new incubation cycle
Pre-heating module Full programming for pre-heating time, temperature and ventilation
Turning programmes Fully adjustable turning programmes: frequency of turning, start/stop timing, 2 or 3 auto-turning positions
SmartTransfer™ module Provides programmable turning intervals during egg transfer
Adaptive Metabolic Feedback™, including fully integrated sensor box, with high precision electronic humidity and CO2 control
ESM™ (Optional)  Energy Saving Module, for fully programmable RPM of the Vortex™
SmartCenter™ (Optional) Hatchery Information System
Microban® (Optional) Antibacterial protection in setter tray
Housing Fully sealed cabinet; robust, easy-to-clean construction with mainly stainless steel interior; extruded, anodised aluminium profiles for maximum stability and ease of installation; seamless ‘Hotmelt’ panels with maximum insulation value; 3-lock door system, includes solid hinges, airtight sealing rubbers and solid door handles

SmartHatchPro™ 4

SmartHatchPro™ 5

Capacity hen eggs 19,200 24,000
Capacity duck eggs 14,112 17,640
Capacity turkey eggs 14,112 17,640
Height (+ height of motor) mm 2459 (+300)
Height including louvre (mm) 2978
Width (mm) 2574 3184
Depth (+ central operating console) mm 2213 (+72)
Number of hatcher dolleys 4 5
Number of hatcher baskets 128 160
Modular design Up to six modules with a capacity of 115,200/144,000 hen eggs
Heating Electrical heating
Cooling SurroundCooling™: 12 parallel water cooling circuits, incorporated in aluminium cabinet walls
Humidification Spray nozzle or humidity roller


SmartTouch™, including multiple machine control
Display High-contrast, 10.4 inch colour LCD screen with Projective Capacitive Touch screen technology (PCT)
Embryonic reference Detailed Academy info on the current status of embryonic development
Microban® Antibacterial protection in hatcher basket
Performance testing module To run a performance check on incubators before starting a new incubation cycle
SmartWatch™ (Optional) Hatch window module, including fully integrated sensor box, with high precision electronic humidity and CO2 control
SmartCenter™ (Optional) Hatchery Information System
Housing Fully sealed cabinet; robust, easy-to-clean construction with extruded, anodized aluminum profiles for maximum stability and ease of installation; smooth-walled ‘food-safe’ aluminium inner walls; seamless ‘Hotmelt’ panels with maximum insulation value; 3-lock door system, includes solid hinges, airtight sealing rubbers and solid door handles
